Thermal Paper Roll - Consistent Print Quality
The core technology of thermal paper lies in its special heat-sensitive coating and precise thermal energy response. It does not record through physical pressure or traditional ink, but uses heat-induced chemical changes to achieve imaging.
Customization Guide
Coating Technology: BPA Free, Phenol-Free / BPS Free, Long-life / Archival, Top-Coated (Water/Oil/Alcohol)
Basic Weight: 48g / 50g: Extremely thin and lightweight, optimal cost.55g / 58g: Standard thickness, industry-standard.65g+: Extremely thick, premium feel, more stable lettering.
Packaging Specifications: High-quality heat shrink film/aluminum foil packaging, common packing quantities: 50 rolls/box, 100 rolls/box
Storage Guidelines: Store in a cool place (recommended 18°C - 25°C). Avoid proximity to heaters or heat sources. Avoid direct sunlight or prolonged exposure to strong fluorescent light. Do not store with volatile solvents (alcohol, nail polish, glue).
Size Specifications
Width: 80mm, 57mm, 76mm, 110mm (Custom widths available).
Roll Diameter: 30mm – 200mm
Paper Weight
48g, 55g, 58g, 65g, 70g, 80g
Core Material
Material: Paper Core, Plastic Core, Honeycomb Core Inner
Diameter: 12.7mm (1/2″), 18mm, 25mm
Coating Performance
Single-proof, Three-proof, Five-proof
Winding Direction
Coated side facing out, Coated side facing in
Packing Method
Shrink wrap, Aluminum foil, Individual bag
Environmental Standards
BPA Free, BPA/BPS Free, Phenol-Free,FSC Certified
Shipping Marks
Supports neutral packaging, Private label
thermal paper Features
Thermal paper Application Scenarios
Supermarket & Retail
Core Requirements：
Excellent value for money / Less paper replacement
Recommended Paper Type：
Standard Eco-friendly
Key Parameter References：
80x80mm | 48gsm/55gsm
Restaurant & Kitchen
Core Requirements：
Waterproof and oil-proof / High-temperature resistant
Recommended Paper Type：
Premium 3-Proof (Water/Oil/Heat)
Key Parameter References：
80x80mm | 58gsm/65gsm

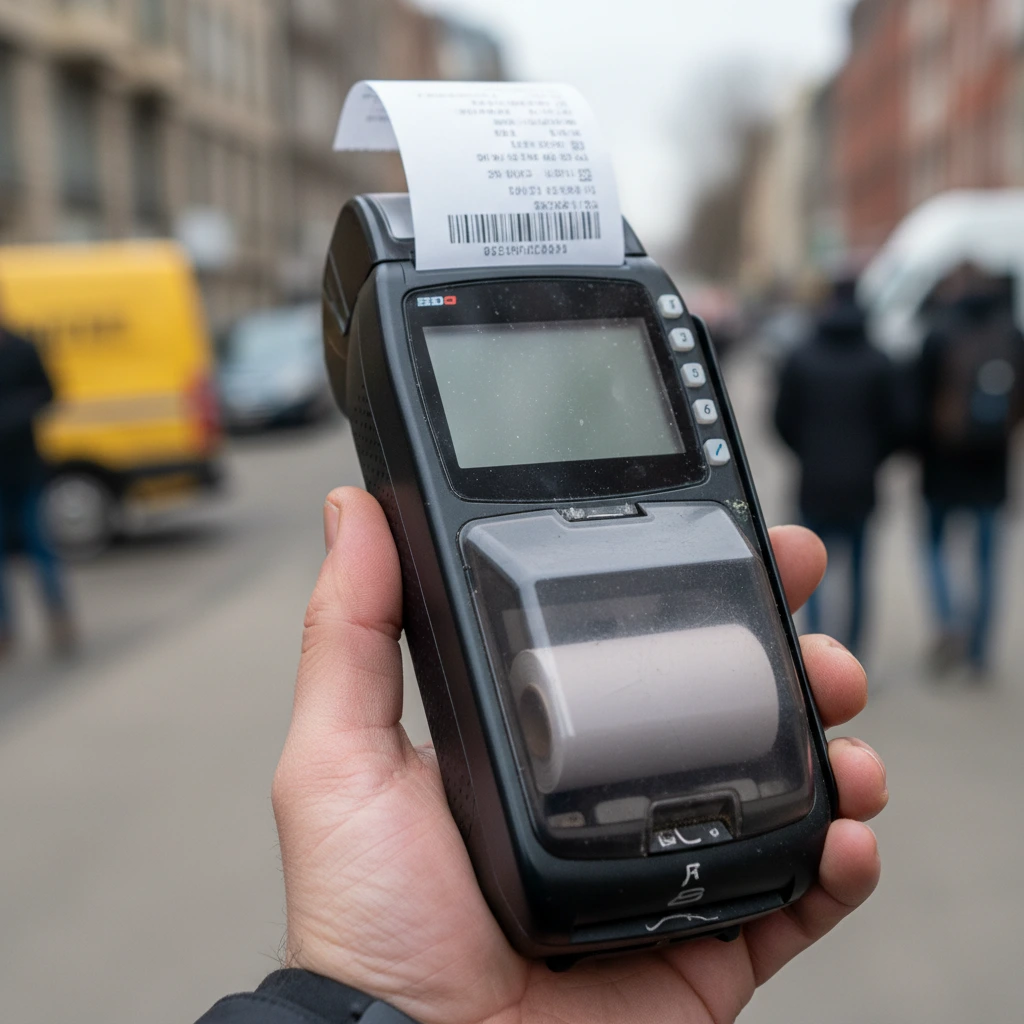

Mobile POS & Delivery
Core Requirements：
Compatible with handheld devices / High color rendering
Recommended Paper Type：
Mobile POS Grade Paper
Key Parameter References：
57x40mm / 57x30mm | 55gsm | Small roll diameter
Financial & Medical Archives
Core Requirements：
Long-term Archiving
Recommended Paper Type：
Archival BPA-Free Paper
Key Parameter References：
80x100mm+ | 65gsm/80gsm
FAQ
Why do you emphasize BPA-Free?
BPA is a common developer found in low-end thermal paper. Long-term skin contact may disrupt the body’s endocrine system. Our product uses an environmentally friendly alternative developer, ensuring safety for cashiers and customers.
How long does the print on thermal paper last?
Standard: 2-3 years. Long-lasting: 5-10 years. Note: Avoid direct sunlight, high temperatures, or contact with oils for optimal preservation.
Why do some paper rolls appear yellowed or have an odor?
Yellowing is usually due to oxidation caused by the use of low-quality base paper or unstable chemical components. Our paper rolls use high-brightness wood pulp base paper, which is odorless and dust-free, ensuring clean printing.
How do I determine which coating I need?
General Retail: Single-layer waterproof standard paper is recommended. Food Service/Kitchen: “Three-proof” paper (waterproof, oil-proof, alcohol-proof) is strongly recommended to prevent the print from becoming blurred due to oil fumes or water stains.
Will your paper rolls damage your printer?
No. Our paper has an ultra-smooth coating that produces very little dust, effectively reducing printhead wear and extending the life of your equipment.
Troubleshooting Guide
No text printed
Incorrect paper orientation: Thermal paper only prints on one side. Try flipping the paper roll and reinstalling it.
Faint/Blurry text
Density setting too low: Increase the printer’s density setting; or clean dust from the print head.
Incomplete printing/white lines
Dirty/damaged print head: Clean the print head’s thermal pad with an alcohol swab; if ineffective, it indicates hardware aging.
Paper turning black
Overheating: Ambient temperature too high or paper roll near a heat source; store in a cool place below 25°C.
Text disappearing quickly
Incorrect environment/model selection: Keep away from alcohol, grease, and strong light; for long-term storage, use “long-life/three-proof” paper.
Difficult to tear paper
Incorrect tearing method: Ensure you tear quickly along the printer’s cutting direction; check for residual glue on the cutter.
Frequent paper jams
Incompatible specifications: Check if the paper roll is too large or the core is deformed; ensure the paper roll is neatly placed into the paper tray.
